Planika FLA4/FLA4+ Bioethanol Fireplace Inserts

Price: $10,640

Tax included. Shipping calculated at checkout.

Burner Model: FLA4

FLA4

FLA4 Plus

Size: 590mm

590mm

790mm

990mm

1190mm

1490mm

1990mm

2490mm

Product variant with selected options does not exist!

SKU: PLK110101

In stock and ready for shipping

Frequently Bought Together

DELIVERY ESTIMATE

Calculate Shipping

Enter your Australian suburb and postcode to check available delivery rates for this product.

Australian-ownedAustralian family business

Australia-wide deliveryDelivery options shown at checkout

Secure checkoutProtected online payment

TRADE & PROJECTSNeed a project or bulk-order quotation?

PRODUCT DETAILS

Planika FLA4/FLA4+ Bioethanol Fireplace Inserts

At a Glance

Brand: Planika
Product Type: Automatic bioethanol fireplace insert
Models: FLA4 and FLA4+
Available Lengths: 590, 790, 990, 1190, 1490, 1990 and 2490 mm
Fuel: Bioethanol
Installation: Indoor built-in, zero-clearance design
Control: Included remote, concealed touch panel and Planika mobile app
Warranty: 5 years

Description

Planika FLA4 and FLA4+ Automatic Bioethanol Fireplace Inserts

The Planika FLA4 range is a fully automatic linear fireplace insert engineered around Planika’s patented BEV Technology®, which burns ethanol vapours above the fuel reservoir. It delivers a real flame without a chimney or gas connection and is designed for premium built-in indoor installations.

FLA4 and FLA4+ share the same burner lengths, heat outputs and minimum-room requirements. FLA4+ adds a substantially larger fuel reservoir for extended maximum burn times.

Key Features

Automatic BEV Technology® ethanol-vapour combustion system
Six-stage flame-height control
Included remote control and concealed touch display
Mobile-app operation, fuel-level display, timer and child lock
Automatic refilling system with automatic shut-off when full
CO₂, temperature, fuel-level, seismic and spillage monitoring
Smart Home System compatibility with optional SHS module
Zero-clearance construction for flexible architectural integration
Optional decorative logs, stones, glass screens, custom lengths and custom top finishes

Specifications

Model	Dimensions (W × H × D)	Capacity	Max. Burn Time	Max. Heat	Minimum Room
FLA4 590	590 × 220 × 280 mm	3.1 L	5 hours	3.1 kW	31 m³
FLA4+ 590	590 × 305 × 280 mm	9.6 L	16 hours	3.1 kW	31 m³
FLA4 790	790 × 220 × 280 mm	4.3 L	8 hours	4.4 kW	44 m³
FLA4+ 790	790 × 305 × 280 mm	13.4 L	25 hours	4.4 kW	44 m³
FLA4 990	990 × 220 × 280 mm	5.5 L	8 hours	7.0 kW	70 m³
FLA4+ 990	990 × 305 × 280 mm	17.2 L	26 hours	7.0 kW	70 m³
FLA4 1190	1190 × 220 × 280 mm	6.8 L	9 hours	9.4 kW	94 m³
FLA4+ 1190	1190 × 305 × 280 mm	21.0 L	30 hours	9.4 kW	94 m³
FLA4 1490	1490 × 220 × 280 mm	8.6 L	9 hours	13.0 kW	130 m³
FLA4+ 1490	1490 × 305 × 280 mm	26.8 L	30 hours	13.0 kW	130 m³
FLA4 1990	1990 × 220 × 280 mm	11.7 L	10 hours	18.0 kW	180 m³
FLA4+ 1990	1990 × 305 × 280 mm	36.3 L	31 hours	18.0 kW	180 m³
FLA4 2490	2490 × 220 × 280 mm	14.8 L	10 hours	22.5 kW	225 m³
FLA4+ 2490	2490 × 305 × 280 mm	45.9 L	31 hours	22.5 kW	225 m³

Maximum burn time and heat output vary with flame setting and operating conditions. Confirm the selected model’s installation requirements in its technical card before construction.

Installation and Configuration

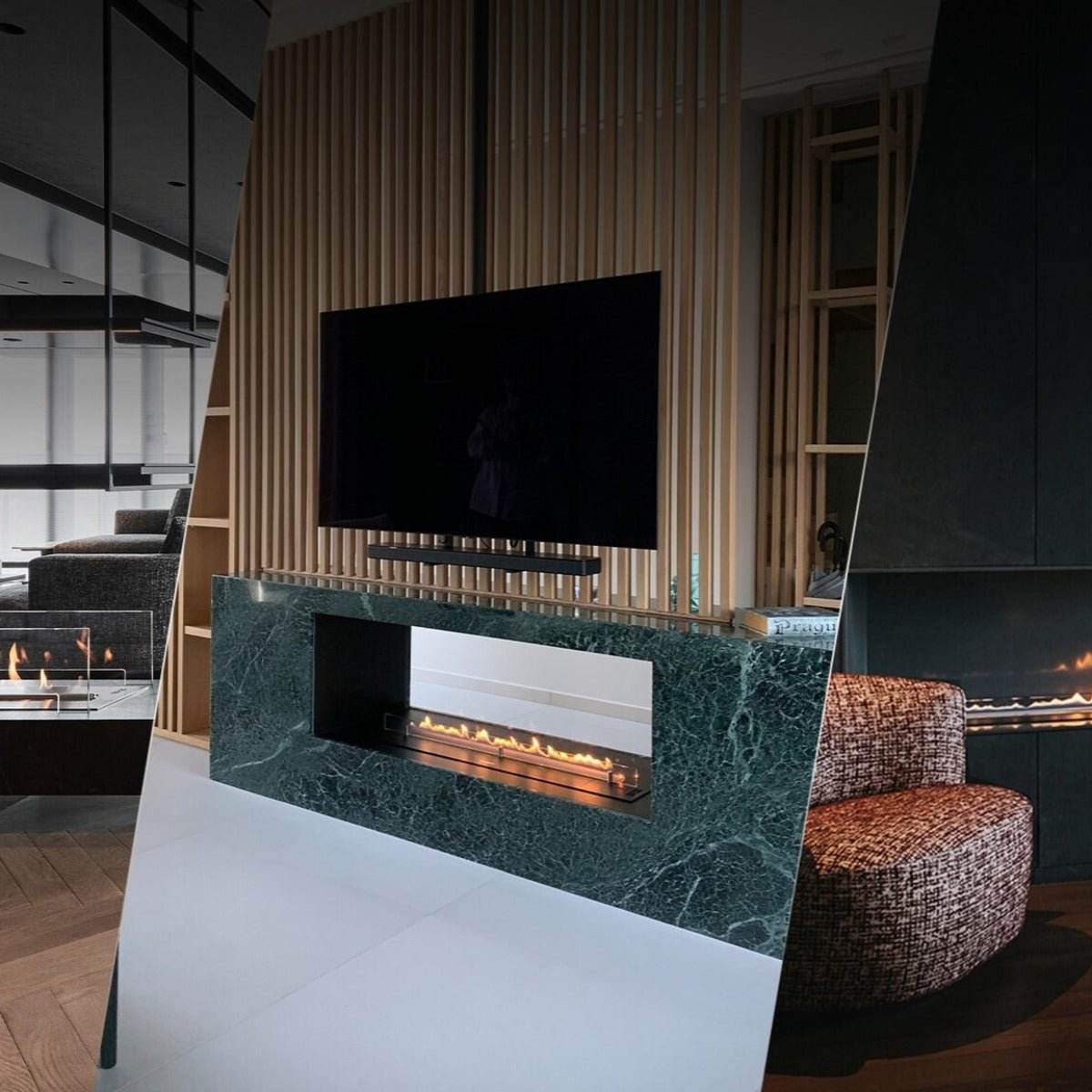

FLA4 and FLA4+ are intended for indoor built-in applications. The burner can be incorporated into single-sided, left-corner, right-corner, three-sided, tunnel, room-divider and island arrangements when the enclosure is designed to the relevant Planika technical documentation.

Glass screens are required for self-constructed tunnel, room-divider and island housings. Final enclosure dimensions, ventilation, clearances, electrical connection and commissioning must follow the documentation for the exact burner size and configuration.

Downloads

Warranty

Planika specifies a five-year warranty for the FLA4 and FLA4+ range. Warranty coverage is subject to Planika’s terms and correct installation, operation and maintenance.
