Decoflame Denver F2 BEV Insert

Decoflame Denver F2 BEV Bioethanol Fireplace Insert

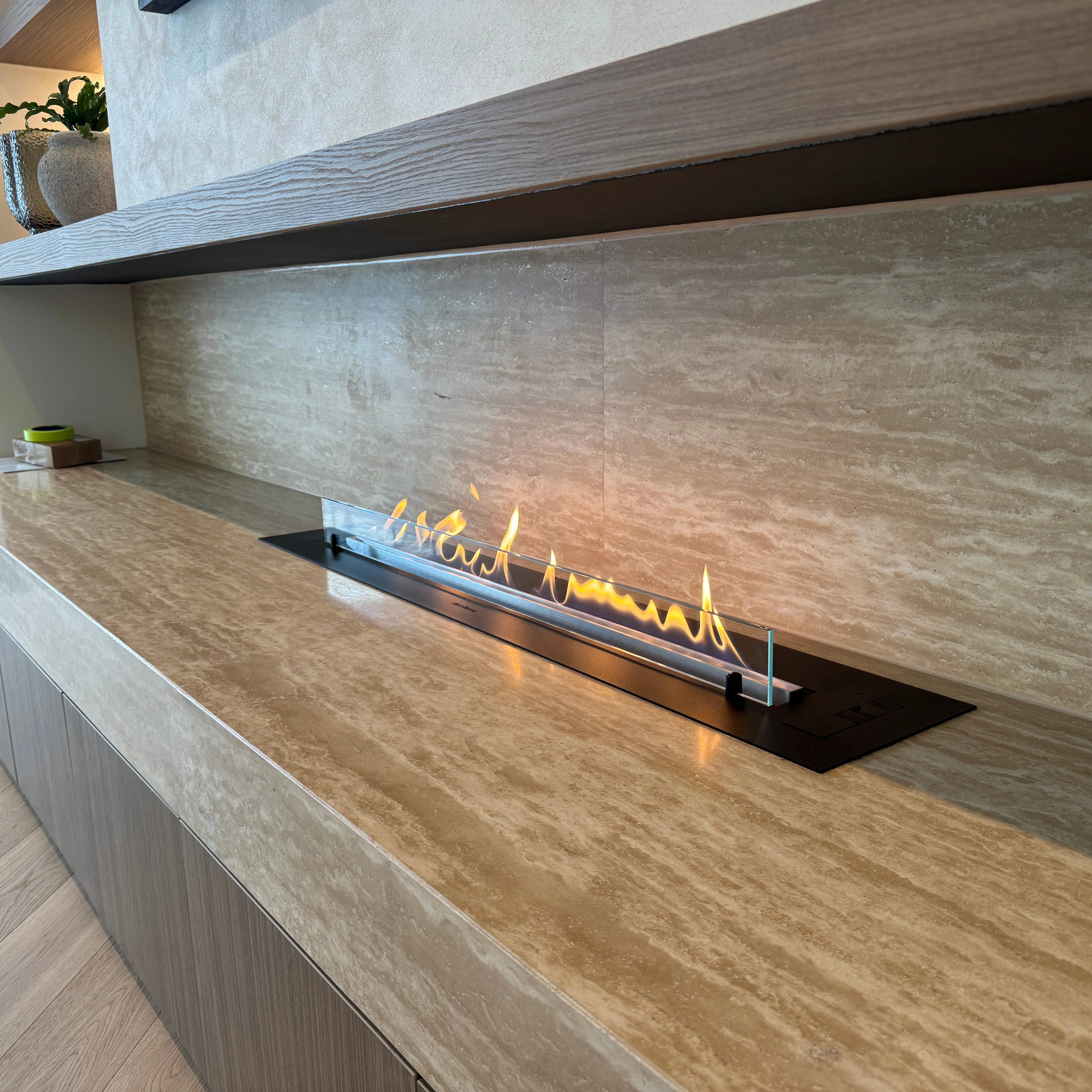

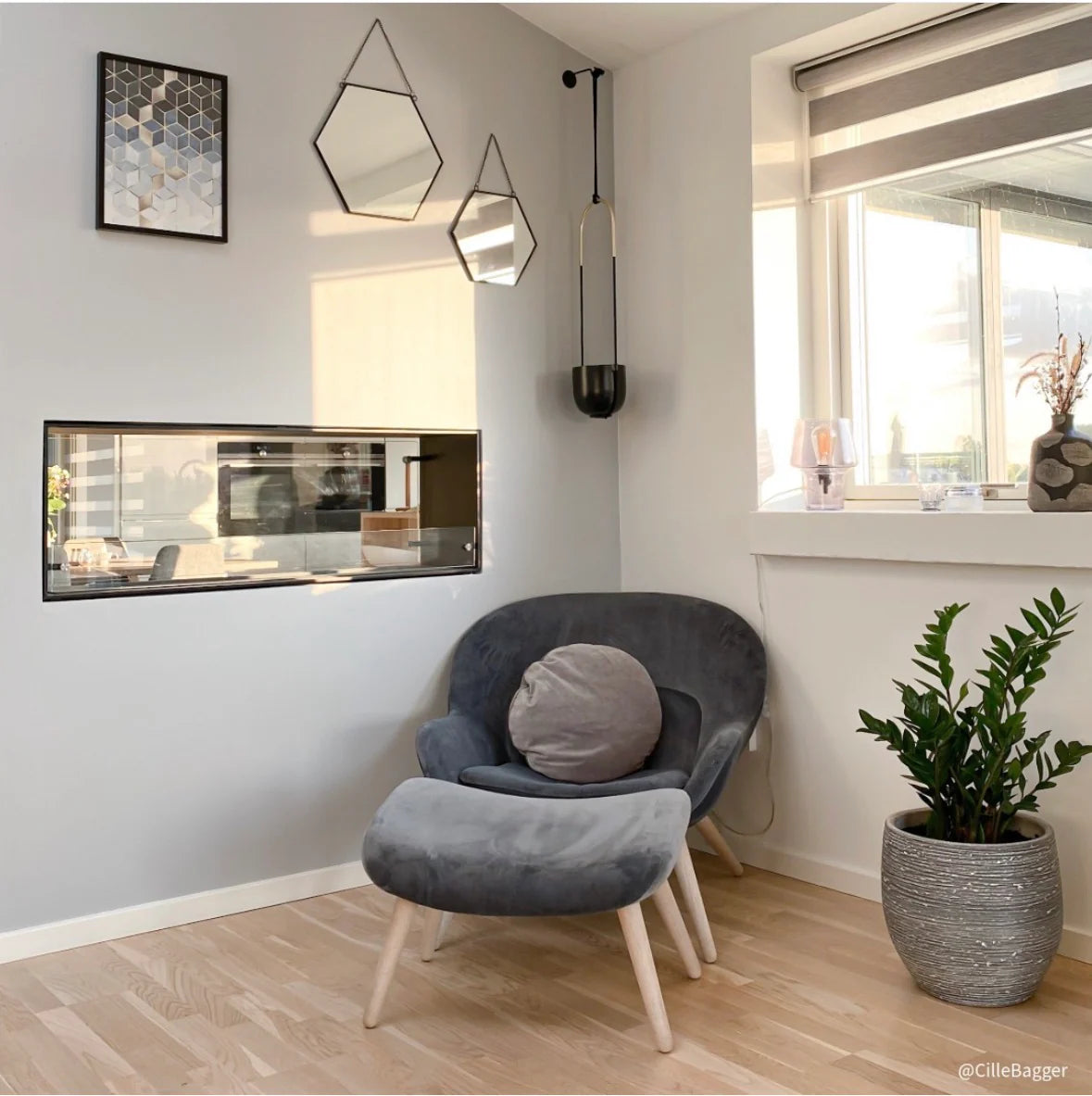

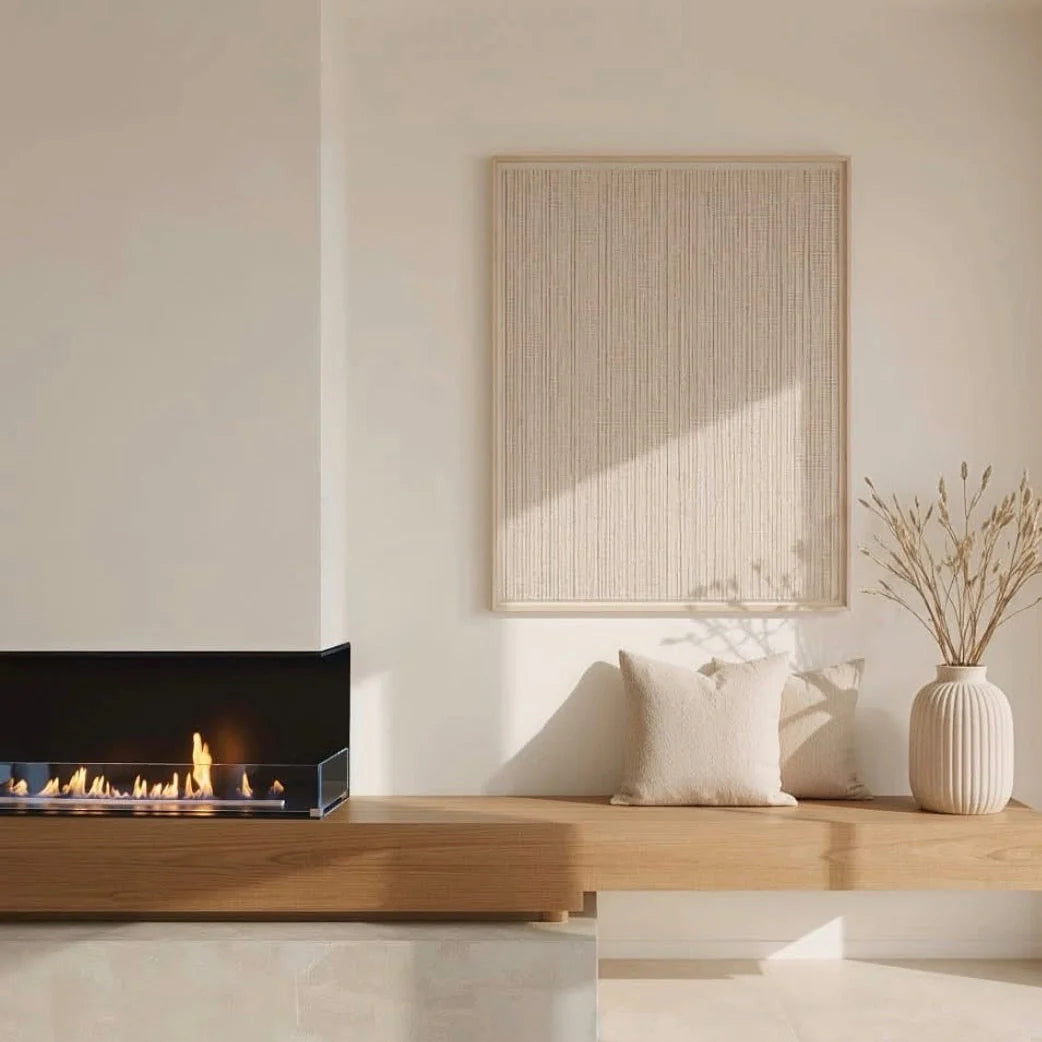

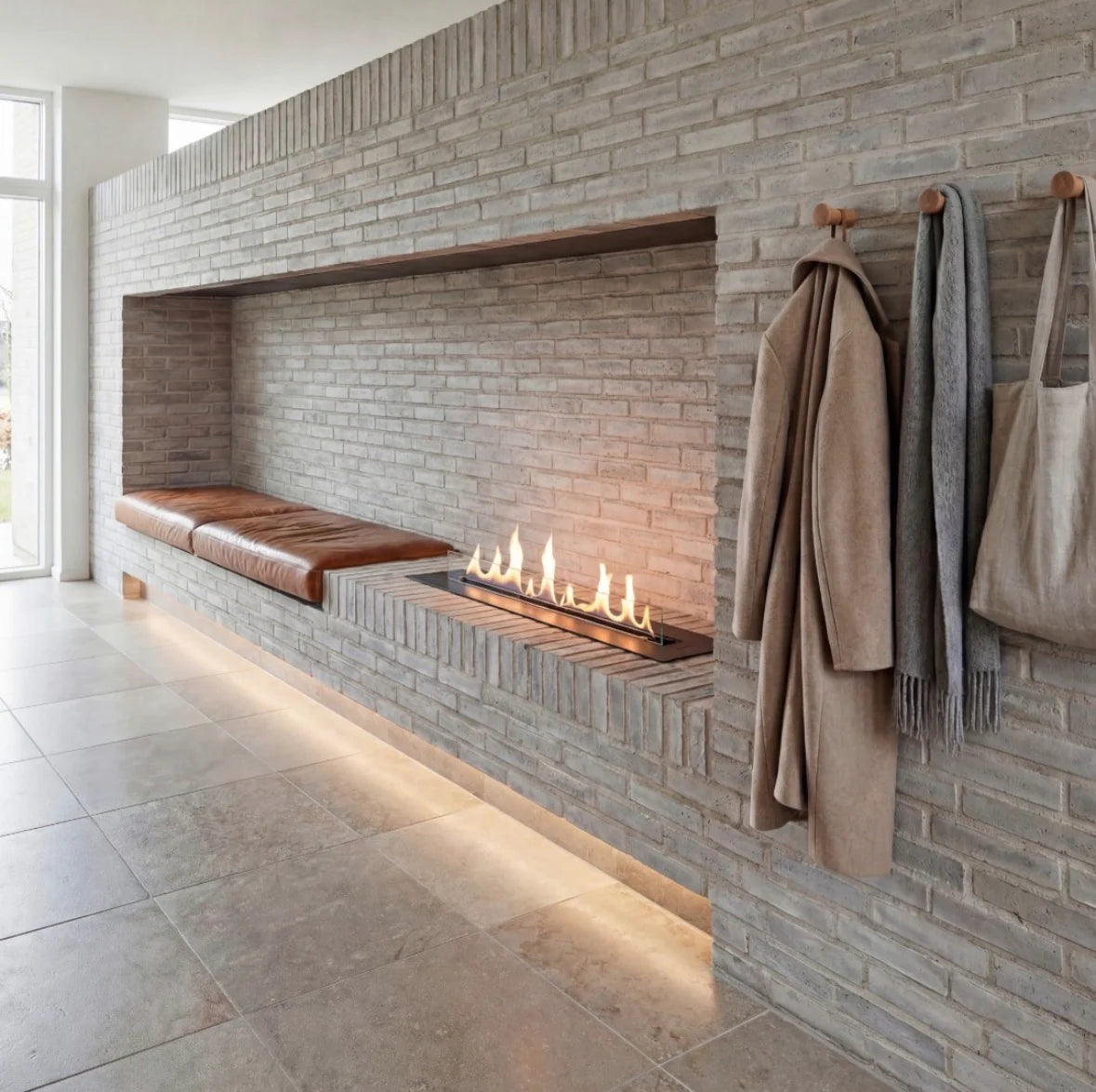

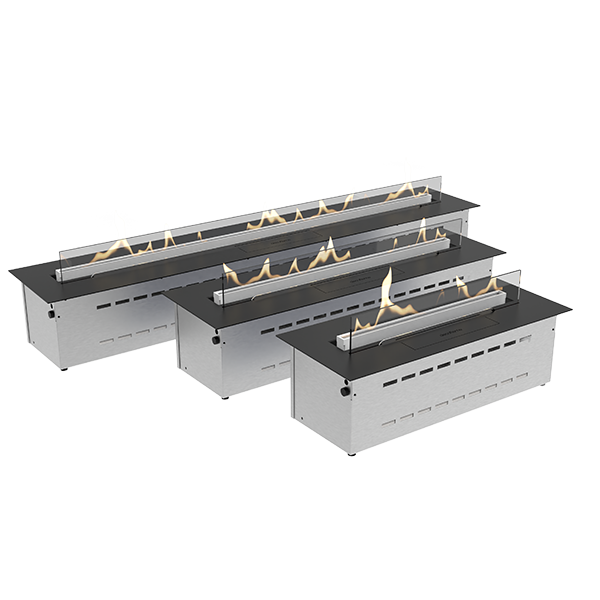

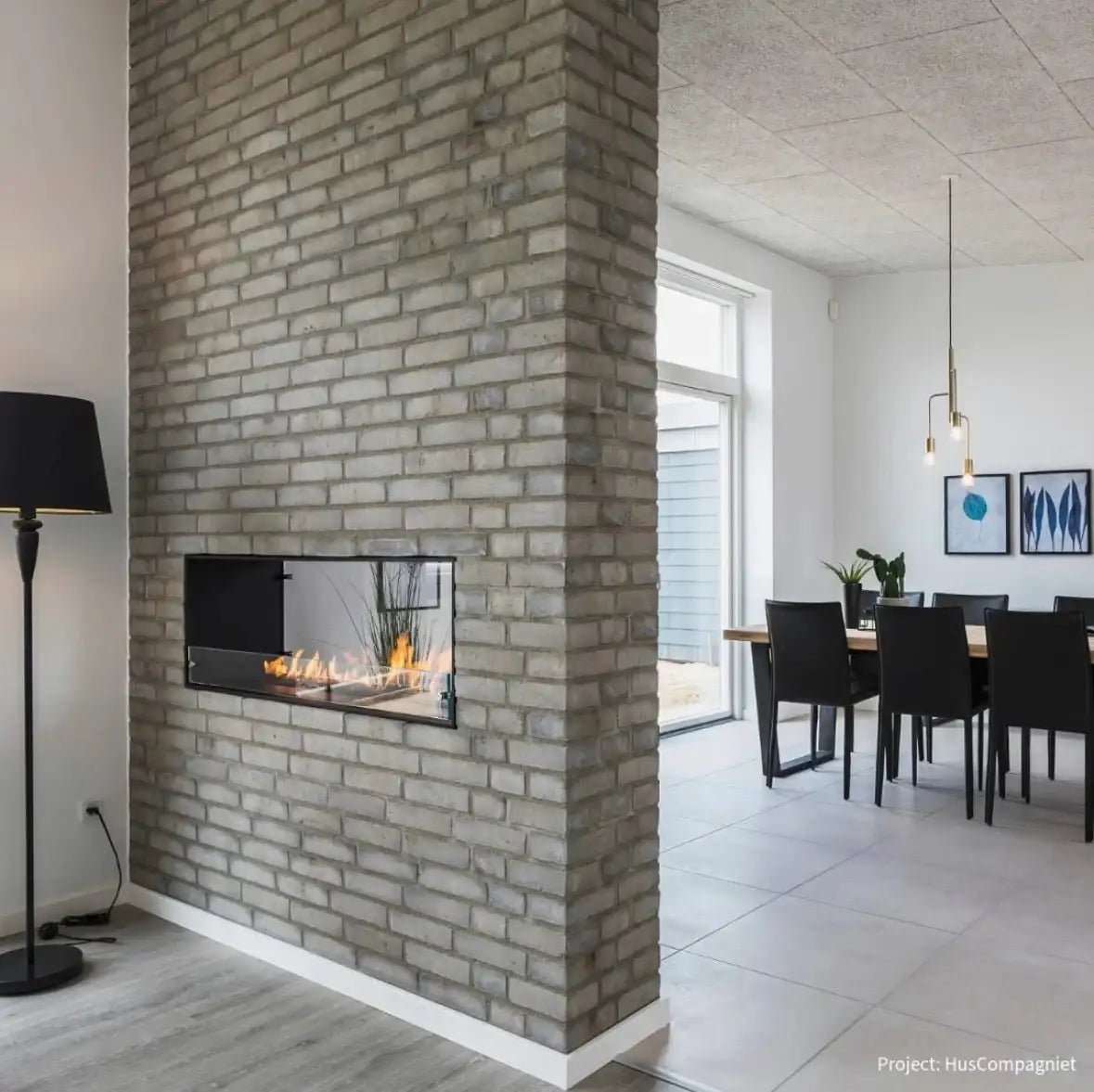

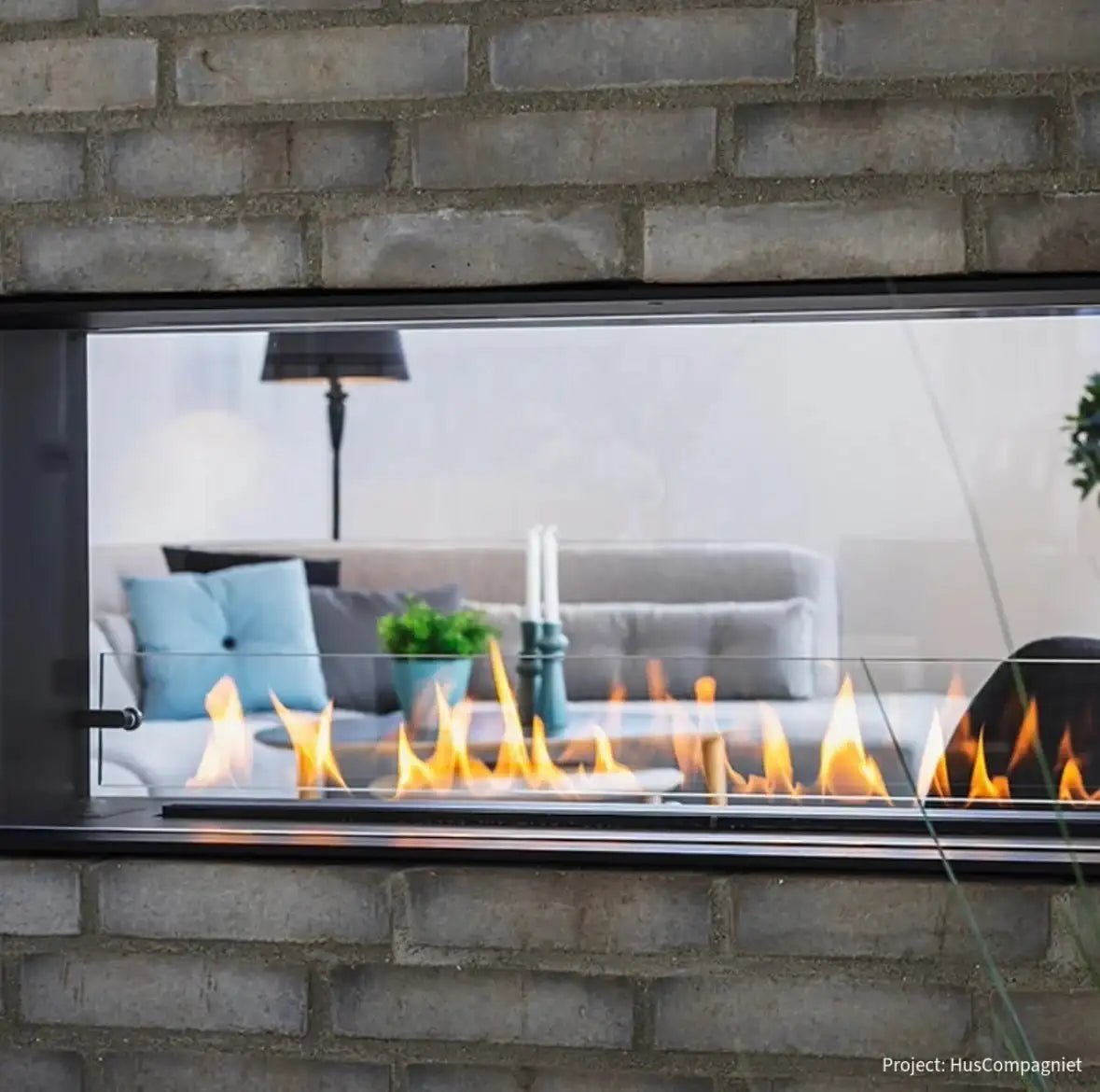

The Decoflame Denver F2 is an electronically controlled, built-in bioethanol fireplace insert for indoor architectural installations. Its vapour-burning system produces a real flame without a chimney or flue, while the supplied remote and external filling pump support straightforward operation.

The current Australian manual specifies two flame levels, automatic electronic operation and monitored refuelling. Installation must follow the current model-specific technical sheet and manual, including room-volume, enclosure, clearance and electrical requirements.

Key Features

• Electronically controlled bioethanol vapour burner
• Two selectable flame levels
• Remote control supplied
• External electronic filling pump with quick connection
• Fuel-level monitoring, spill detection, CO₂ monitoring and self-diagnostics
• Emergency shut-off and temperature monitoring
• Stainless-steel and powder-coated aluminium construction
• Tempered, diamond-clear front glass
• No chimney or flue required

Current Documented Specifications

920 mm variant: This remains an established Outdoorium variant with its existing supplier SKU and pricing. Confirm the current model-specific technical sheet with Outdoorium before finalising cabinetry, clearances or performance calculations.

Installation Requirements

• Indoor installation only
• Install in a stable enclosure made from non-combustible materials
• Provide a 230 V AC, 50–60 Hz earthed electrical connection
• Maintain the model-specific minimum room volume
• For the documented 520, 720 and 1120 models, provide the specified enclosure opening and a minimum 500 mm unobstructed space above the burner
• Do not place combustible or heat-sensitive materials within the clearances shown in the technical documentation
• Installation and electrical work must be completed in accordance with the current manual and applicable Australian requirements

Documented Enclosure Openings

• F2 520: 505 × 250 × 200 mm
• F2 720: 705 × 250 × 200 mm
• F2 1120: 1105 × 250 × 200 mm

Always use the drawing for the selected model as the controlling installation reference.

What Is Included

• Denver F2 burner
• Front safety glass
• External electronic filling pump
• Remote control
• Australian installation and operating manual
• Product identification label

Technical Documents

• Denver F2 520 technical sheet
• Denver F2 720 technical sheet
• Denver F2 1120 technical sheet
• Denver F2 Australian manual
• Denver F2, F3 and F6 comparison

Important

Specifications can vary by size. Confirm the selected variant, enclosure drawing, room volume and current installation manual before construction. Only use the fuel grade and operating procedure specified by Decoflame.
