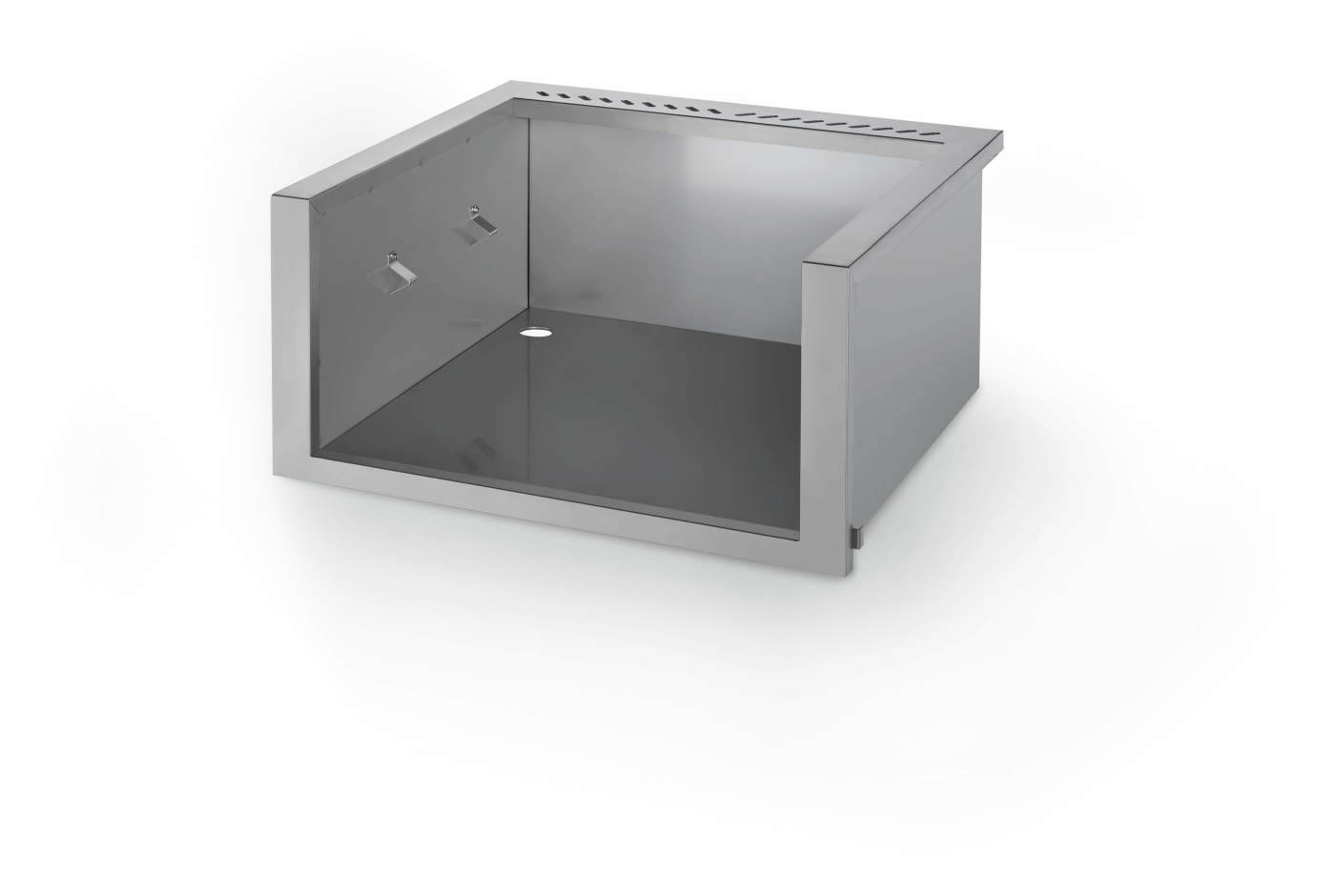

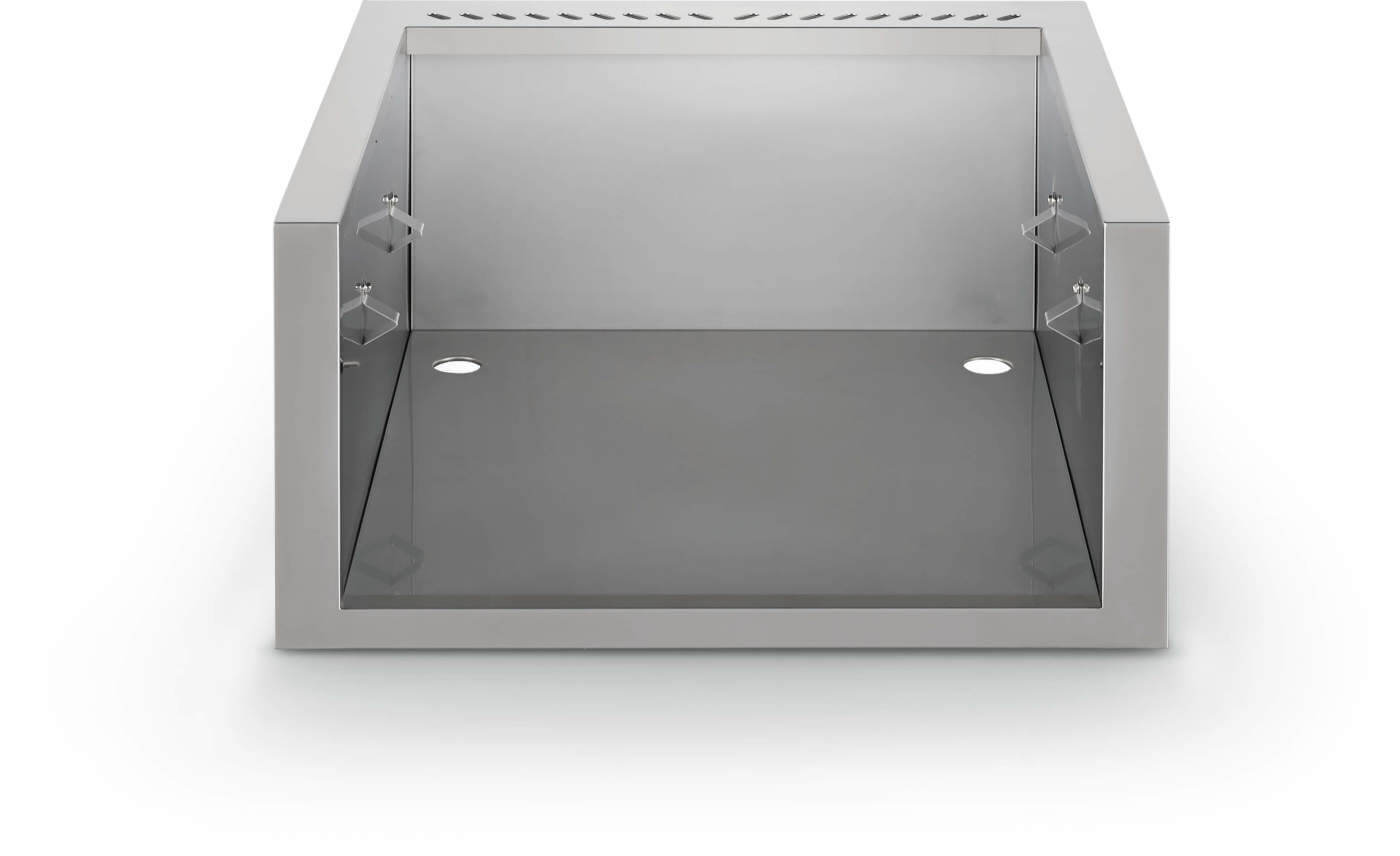

Integrate compatible Napoleon Built-In 500 and 700 Series dual burners into a custom outdoor kitchen with the Napoleon 18-Inch Zero Clearance Liner. Designed specifically for the BIB18IR Dual Infrared Drop-In Burner and BIB18RT Dual Range Burner, this stainless steel liner provides greater flexibility when combustible building materials are used around the burner installation.
Its durable stainless steel construction and seamless trim help create a clean, professional built-in finish while allowing combustible materials to be positioned closer to the compatible burner in accordance with Napoleon's installation requirements. It is a purpose-designed solution for incorporating Napoleon's 18-inch dual burners into custom outdoor kitchen cabinetry and structures.
At a Glance
-
Product Type: Zero Clearance Liner
-
Compatible Series: Napoleon Built-In 500 & 700 Series
-
Compatibility: BIB18IR & BIB18RT
-
Designed For: 18-Inch Dual Drop-In Burners
-
Construction: Stainless Steel
-
Installation: Custom Outdoor Kitchen
-
Width: 23.75 in (60 cm)
-
Depth: 23 in (58.40 cm)
-
Warranty: Napoleon 10 Year Limited Warranty
Why Choose the Napoleon 18-Inch Zero Clearance Liner?
-
Purpose-built for Napoleon dual burners: Designed for the BIB18IR Dual Infrared Drop-In Burner and BIB18RT Dual Range Burner.
-
Greater installation flexibility: Allows combustible building materials to be positioned closer to the compatible burner when installed in accordance with Napoleon's requirements.
-
Durable stainless steel construction: Designed for long-term integration into premium outdoor kitchens.
-
Seamless trim: Helps create a clean, professional finish around the installed burner.
-
Ideal for custom kitchens: Provides greater flexibility when planning cabinetry and surrounding construction materials.
Key Features
- 18-inch zero clearance liner
- Designed for compatible Napoleon Built-In 500 and 700 Series dual burners
- Compatible with BIB18IR Dual Infrared Drop-In Burner
- Compatible with BIB18RT Dual Range Burner
- Durable stainless steel construction
- Allows greater flexibility when combustible materials are used in outdoor kitchen construction
- Allows combustible materials to be positioned closer to the compatible burner when installed correctly
- Seamless trim for a clean built-in finish
- Purpose-designed for custom outdoor kitchen applications
Product Overview
The Napoleon 18-Inch Zero Clearance Liner is a purpose-built installation accessory for compatible Napoleon dual drop-in burners used in custom outdoor kitchens.
Designed for the BIB18IR Dual Infrared Drop-In Burner and BIB18RT Dual Range Burner, the liner provides a protective enclosure when combustible materials form part of the surrounding cabinetry or outdoor kitchen structure.
This gives designers and homeowners greater flexibility when incorporating a dedicated Napoleon side-cooking station into an outdoor kitchen.
Designed for Combustible Installations
The Zero Clearance Liner is designed to allow combustible building materials to be installed near or against the liner when the compatible burner and liner are installed in accordance with Napoleon's requirements.
This can provide greater flexibility when an outdoor kitchen incorporates timber framing, cabinetry or other combustible construction materials that would otherwise affect the placement of the gas burner.
Always consult the applicable Napoleon installation manual before designing or constructing the surrounding outdoor kitchen.
Compatible with BIB18IR & BIB18RT
This Zero Clearance Liner is specifically designed for Napoleon's compatible 18-inch dual burner models:
-
BIB18IR – Dual Infrared Drop-In Burner
-
BIB18RT – Dual Range Burner
This allows the same purpose-designed liner format to support either an infrared cooking station or conventional dual range burner, depending on the outdoor kitchen configuration.
Please confirm compatibility with your exact Napoleon burner model before ordering.
Stainless Steel Construction
The liner is manufactured from durable stainless steel for long-term use within a built-in outdoor kitchen installation.
Its stainless steel construction also complements Napoleon's premium built-in BBQs, burners and outdoor kitchen components, helping maintain a consistent material finish throughout the cooking area.
Seamless Built-In Finish
A seamless trim design helps integrate the liner neatly into the surrounding outdoor kitchen construction for a clean and finished appearance.
When correctly incorporated into the cabinetry or structure, the liner supports the integrated presentation expected from a purpose-built Napoleon outdoor kitchen.
Outdoorium Expert Advice
If you're adding a Napoleon BIB18IR or BIB18RT to an outdoor kitchen that uses combustible cabinetry, framing or surrounding materials, plan for the Zero Clearance Liner before the cabinetry is manufactured or construction begins.
This is especially important when the burner is being installed alongside a Napoleon built-in BBQ. Planning the BBQ, burner, required liners, ventilation and appliance openings together helps create a cleaner overall kitchen layout and reduces the risk of cabinetry changes later.
Always work from the installation documentation supplied for your exact Napoleon burner and Zero Clearance Liner before finalising dimensions or cut-outs.
Perfect For
- Napoleon BIB18IR installations
- Napoleon BIB18RT installations
- Built-In 500 Series outdoor kitchens
- Built-In 700 Series outdoor kitchens
- Custom outdoor kitchen installations
- Outdoor kitchens incorporating combustible materials
- Timber-framed outdoor kitchen structures
- Premium alfresco entertaining areas
- Dedicated side-cooking stations
- Customers requiring greater installation flexibility
Compatibility
This Zero Clearance Liner is specifically designed for use with compatible Napoleon 18-inch dual burner models:
-
BIB18IR – Dual Infrared Drop-In Burner
-
BIB18RT – Dual Range Burner
Please verify compatibility with your exact Napoleon appliance and consult the applicable installation manual before ordering or commencing construction.
Technical Specifications
| Brand |
Napoleon |
| Product Type |
Zero Clearance Liner |
| Compatible Series |
Built-In 500 & 700 Series |
| Compatible Models |
BIB18IR & BIB18RT |
| Designed For |
18-Inch Dual Drop-In Burners |
| Construction |
Stainless Steel |
| Height |
11.25 in (28.60 cm) |
| Width |
23.75 in (60 cm) |
| Depth |
23 in (58.40 cm) |
| Packaging Height |
18.50 in (46.99 cm) |
| Packaging Width |
28 in (71.12 cm) |
| Packaging Depth |
31.75 in (80.65 cm) |
| Packaging Weight |
50 lbs (22.68 kg) |
Warranty
The Napoleon Zero Clearance Liner for Built-In 500 and 700 Series Dual Burners is supplied with a Napoleon 10 Year Limited Warranty.
Please refer to your product manual and Napoleon's official warranty documentation for complete warranty information, conditions and limitations.
Important Installation Information
This liner is designed to provide greater flexibility when installing compatible Napoleon BIB18IR and BIB18RT dual burners near combustible building materials.
Installation must be completed strictly in accordance with Napoleon's installation instructions, including all specified dimensions, ventilation requirements, clearances and construction requirements.
Always confirm the exact burner model and consult the applicable installation manual before constructing cabinetry, framing or benchtop openings.
